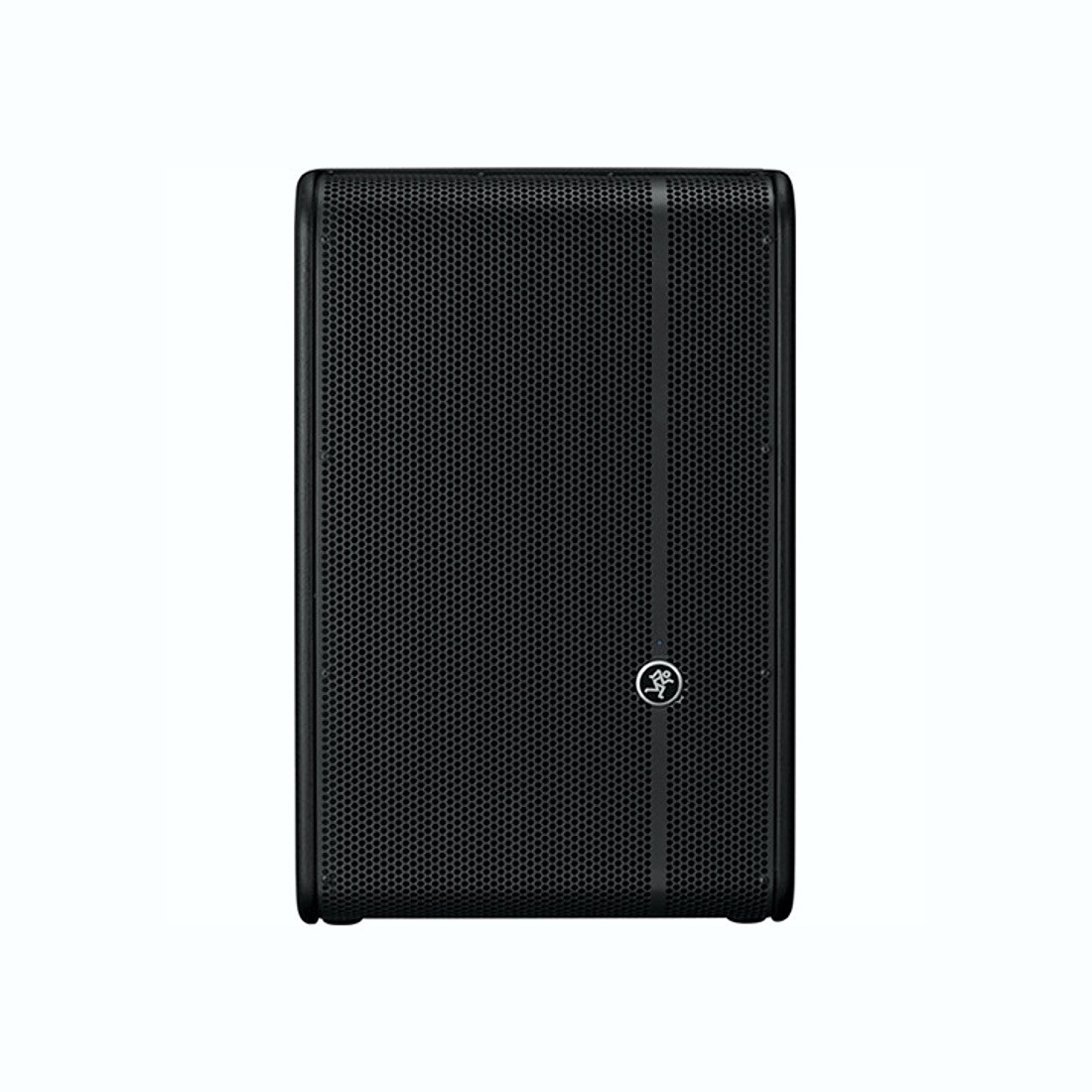

The HD1221 from Mackie is a 2-way powered loudspeaker that delivers high-definition audio from a lightweight and compact design. The all-wood birch cabinet houses a 12" neodymium woofer and a 1.75" titanium compression tweeter to provide crisp, natural audio reproduction with a wide frequency response. The speaker has a custom-designed rotatable 90 x 50 horn created by Martin Audio. It provides a 60° monitor angle for maximum coverage on stage.
Internal Class-D amplifiers provide a combined peak power of 1200W for an incredibly strong performance with low distortion. The efficient amplifier design results in fast recovery and high SPL levels. Built-in HD digital processing includes patented acoustic correction, transducer time alignment and phase correction, and a precision 2-way crossover. All of these elements combine to deliver the best sound experience possible. There are 3 user-selectable voicing modes, letting you adjust the tuning and tone to fit your specific application. Integrated limiting and protection circuitry keep the system operating smoothly and reliably. The speaker also offers an integrated pole socket and 12 fly points for versatile mounting and rigging.
Compact and lightweight cabinet is made from 15mm thick birch plywood with internal bracing and a durable black paint finish. It also has a powder-coated steel grille to protect the drivers
Custom-designed EAW transducers include a 12" neodymium woofer and a 1.75" titanium compression tweeter to provide crisp, natural audio with a wide frequency response
A custom-designed rotatable 90 x 50 horn created by Martin Audio lets you adjust the speaker for vertical or horizontal use
The speaker has a 60° monitor angle for maximum coverage on stage
Internal Class-D amplifiers with Fast Recovery circuitry provide a combined peak power of 1200W for an incredibly strong performance with low distortion. The efficient amplifier design results in extremely clean audio and high SPL levels
Built-in HD digital processing includes patented acoustic correction, transducer time alignment and phase correction, and a precision 2-way crossover. All of these elements combine to deliver the best sound experience possible
You can choose between 3 user-selectable voicing modes, letting you adjust the tuning and tone of the speaker to fit your specific application
Integrated limiting and protection circuitry keep the system operating smoothly and reliably
An integrated pole socket and 12 fly points provide versatile mounting and rigging
Specifications:
Active or Passive: Active
Frequency Response: 55Hz - 20kHz (-10dB) 65Hz - 18kHz (-3dB)
Amplifier LF: Class-D, 500W RMS, 1000W Peak
HF: Class-D, 100W RMS, 200W Peak
Coverage: 90° Horizontal x 50° Vertical
Maximum Sound Pressure Level (SPL): 124dB Measured 133dB Calculated
Total Harmonic Distortion (THD): < 0.03%
Input Impedance: 11k Ohms
Crossover: 1.5kHz
Low Frequency Driver: 12" (305mm) Paper Diaphragm Woofer with Neodymium Magnet and 3" Voice Coil
High Frequency Driver: 1.75" (44mm) Heat-Treated Titanium Tweeter with Ferrite Magnet
Enclosure Material: 15mm Birch Plywood with Black Paint Finish, Powder-Coated Steel Grille, and 3 Integrated Handles
Connectors: 1 x XLR Input, 1 x XLR Parallel Output, 1 x Power Input
Mounting: 1 x Standard Pole Socket, 12 x M10 Fly Points
Power: 100-240VAC, 50/60Hz
Dimensions: (HxWxD) 24 x 15.2 x 15" (610 x 386 x 381mm)
Weight: 50 lbs (22.7kg)
