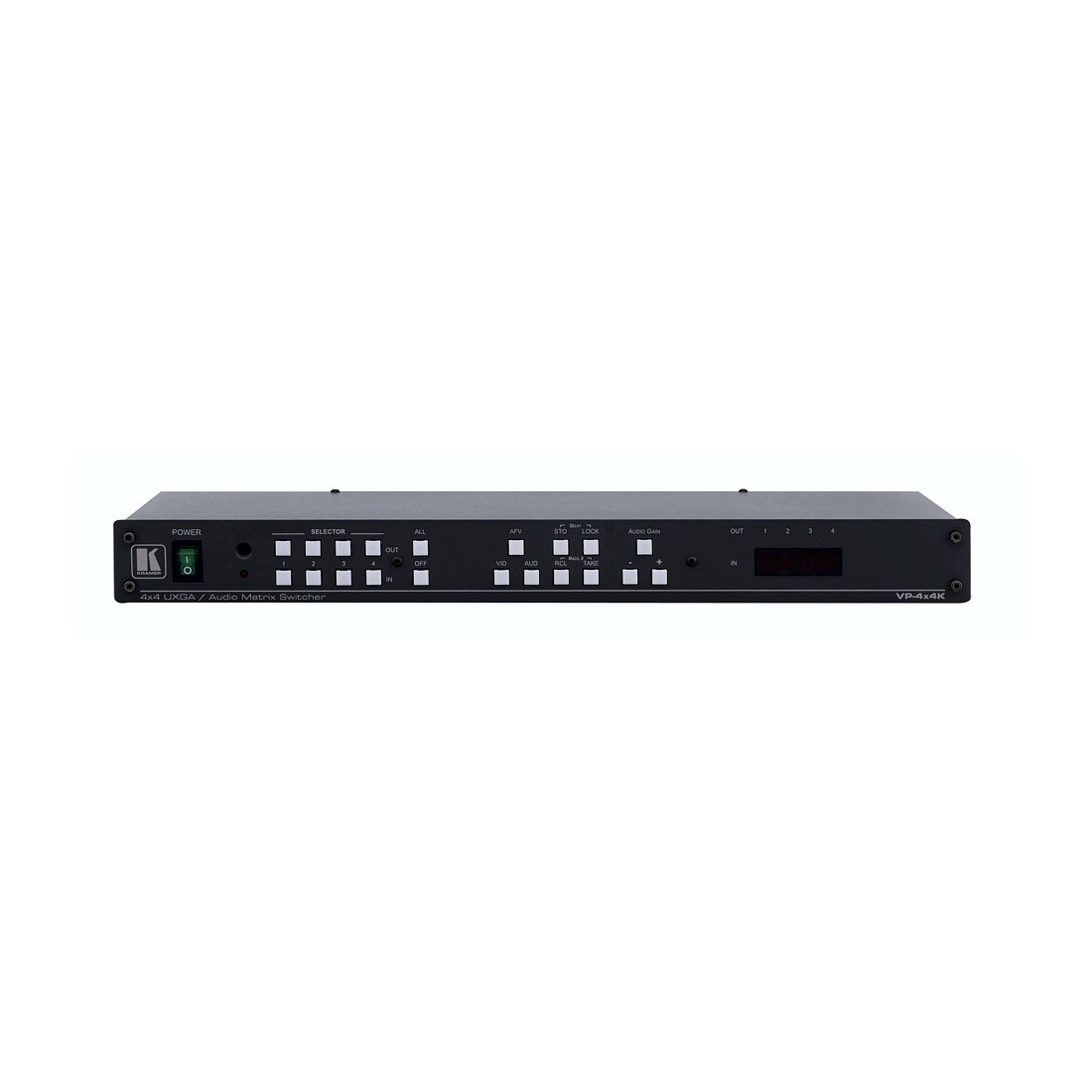

The VP-4x4K 4x4 Computer Graphics Video & Balanced Stereo Audio Matrix Switcher from Kramer supports computer graphics resolutions ranging from VGA through UXGA and higher, as well as balanced stereo audio signals. The unit can route any or all inputs to any or all outputs simultaneously. This solution is well suited for use as a professional display system or for remote monitoring, among many other possible applications.
- This unit offers a bandwidth of 400MHz (-3dB)
- It is HDTV-compatible
- Kramer's proprietary KR-ISP Advanced Sync Processing is designed to ensure compatibility with a wide range of computers (even if the sync level is too low) by restoring the sync signal waveform
- Delayed switching is available up to a 3.5s (user-selectable) delay for clean transitions (seamless switching) when switching between non-genlocked sources
- Audio breakaway switching is a standard feature
- Memory locations store multiple switches as presets to be recalled and executed as needed
- ALL/OFF controls send one input to all outputs, can disconnect all outputs, or turn off individual outputs
- A take button executes multiple switches at the same time
- A front-panel control lockout feature prevents unwanted tampering
- Active input indicational reporting causes each input button on the front panel to automatically light up when the unit detects a video signal on that input, or when an input is selected for switching, the button changes to a different color to indicate it is the active input
- Audio level controls are available for input and output
- Control options include: front panel, RS-485, RS-232 (K-Router Windows-based software), Ethernet, and IR remote (included)
- A worldwide power supply ensures compatibility virtually anywhere
