Live sound reinforcement, speech, vocals, music playback in entertainment, A/V,
and institutional venues - especially when ease of use, audio quality and portability
are important factors. Amplification, mixing, and monitoring for electronic musical instruments.Key Features:

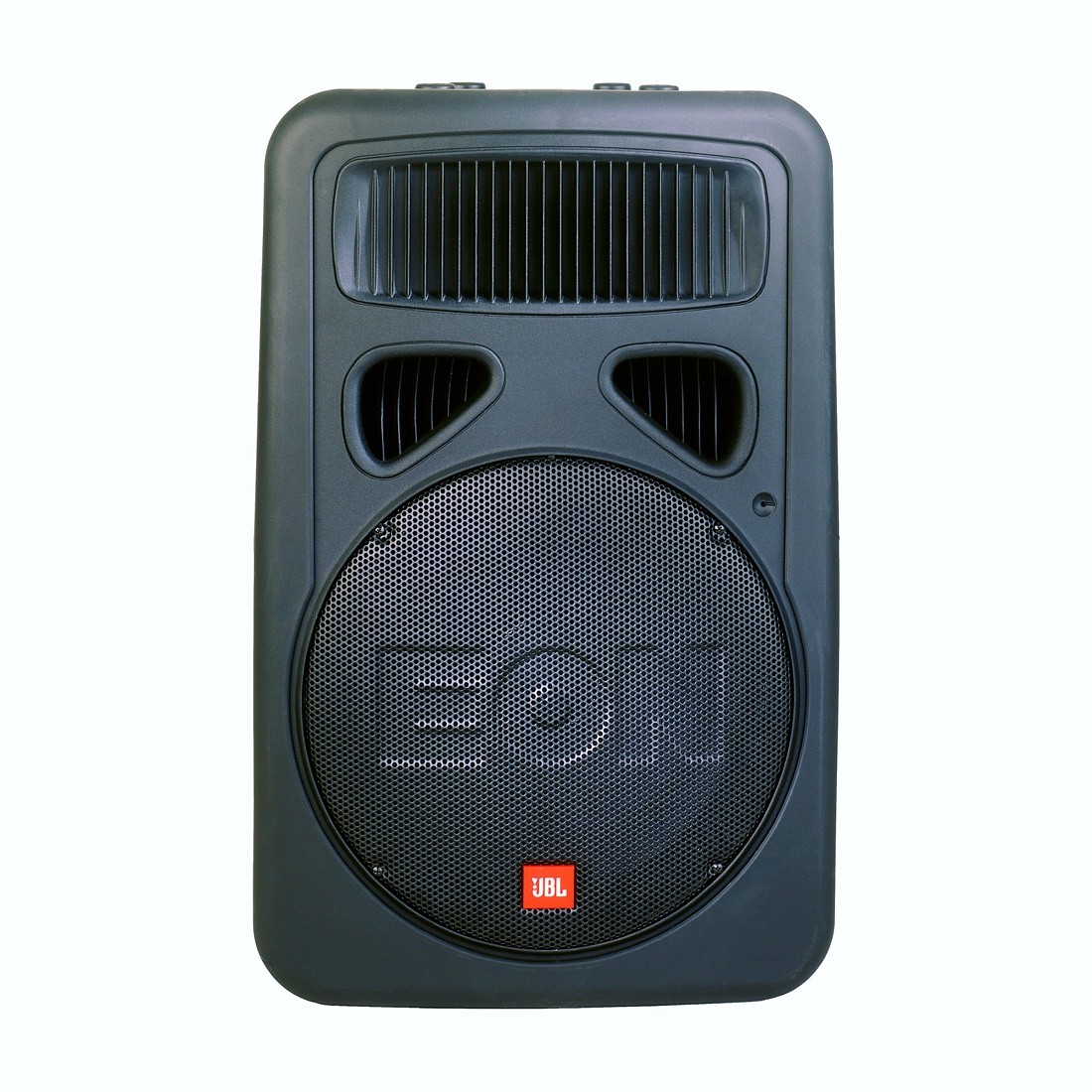

- The second generation of one of the most successful and influential professional speaker systems ever.
- 15 ̋ Differential Drive® low-frequency driver with dual neodymium magnet for light weight and reduced distortion.
- 1 ̋ (throat diameter) JBL compression driver with 1.75 ̋ titanium diaphragm and ferro-fluid cooling.
- 300 watts low-frequency and 100 watts high-frequency (bi-amplified) - actual power delivered to the drivers.
- Built in 3-input mixer. One balanced mic/line input, two 1/4 ̋ phone line-level inputs.Two-band equalization.
- Balanced loop-through/mix output.“Daisy-chain” additional EON speakers or send the mixed output to a mixing console.
- 60° x 90° (nominal) constant directivity horn.
- Thermomaster® Total Thermal Management System®. A single piece, cast-aluminum baffle integrates the woofer frame, horn, and amplifier heat sink. Air movement in the finned ports dissipates heat - no internal or external cooling fans are required.
- Rugged, light-weight, black co-polymer enclosure.
- Integral 35 mm pole mount receptacle.
- Multi-angle enclosure for front of house or stage monitor application.
- Tailored dynamic processing protects amplifiers and speakers from being over-driven without producing extreme changes in frequency response as level varies.
- Extended low-frequency performance delivers powerful bass down to 39 Hz
Specifications:- Freq. Range (-10 dB): 39 Hz - 18 kHz
- Freq. Response (±3 dB): 42 Hz - 17 kHz
- Horz. Coverage (-6 dB): 90°
- Nominal Vert. Coverage (-6 dB): 60°
- Nominal Rated Maximum SPL:129 dB, @ 1 m (3.3 ft)
- Dimensions (H x W x D): 686 mm x 430 mm x 444 mm (27 in x 17 in x 17.5 in.)
- Net Weight: 21 kg (46 lbs.)
- LF Driver: Integral frame with one 15 ̋ (380 mm) driver, dualneodymium magnet, 2 ̋ differential drive voice-coil.
- HF Driver: JBL 2418H-1 1 ̋ (throat diameter) compression driver with 1.75 ̋ diameter titanium diaphragm.
- Ferro-fluid cooled.
- Amplifier Power LF: 300 watts @ low-frequency driver impedance.
- Amplifier Power HF: 100 watts @ high-frequency driver impedance.
- Input 1 Sensitivity: -44 dBu to -22 dBu for rated output (Mic/Line switch in MIC position)
- -12 dBu to +20 dBu for rated output (Mic/Line switch in LINE position)
- Input 2 & 3 Sensitivity: -18 dBu to +20 dBu for rated output
- Output Level:+20 dBu (peak), Loop/Mix switch in MIX position
- Audio Connectors: •Input 1: XLR/F, balanced
- Input 2 & 3: 1/4 ̋ Phone, balanced (TRS)
- Crossover Freq: 1.5 kHz
- Limiting: Low frequency amplifier controlled by dynamic filter
- Loop/Mix Out: XLR/M, balanced
- EQ:High Frequency Shelving, ±15 dB @ 5 kHz Low Frequency Shelving, ±15 dB @ 120 Hz.
- AC Input:110 - 230 VAC, 50 - 60 Hz., 175 watts rating per UL, detachable IEC power cable
