Ellipsoidal, ETC Source 4 Leko with LED 4WRD Module

More Views

Ellipsoidal, ETC Source 4 Leko with LED 4WRD Module
1 Day: $69.00 Extra Day $58.65

ETC Source 4 Ellipsoidal Leko with LED 4WRD Module
$0.00
1 Day: $69.00 Extra Day $58.65
3 Days: $138.00 Extra Day $55.20
5 Days: $241.50 Extra Day $51.75

Deposit Amount: $40.00

Choose Your Reservation Dates

Description

Details

For the energy conscious or those with limited power resources, the LED Source Four is the answer.  We combine a standard Source 4 and add the 4WRD LED Module for outstanding results with light output comparable to HPL bulbs and incredible power savings.

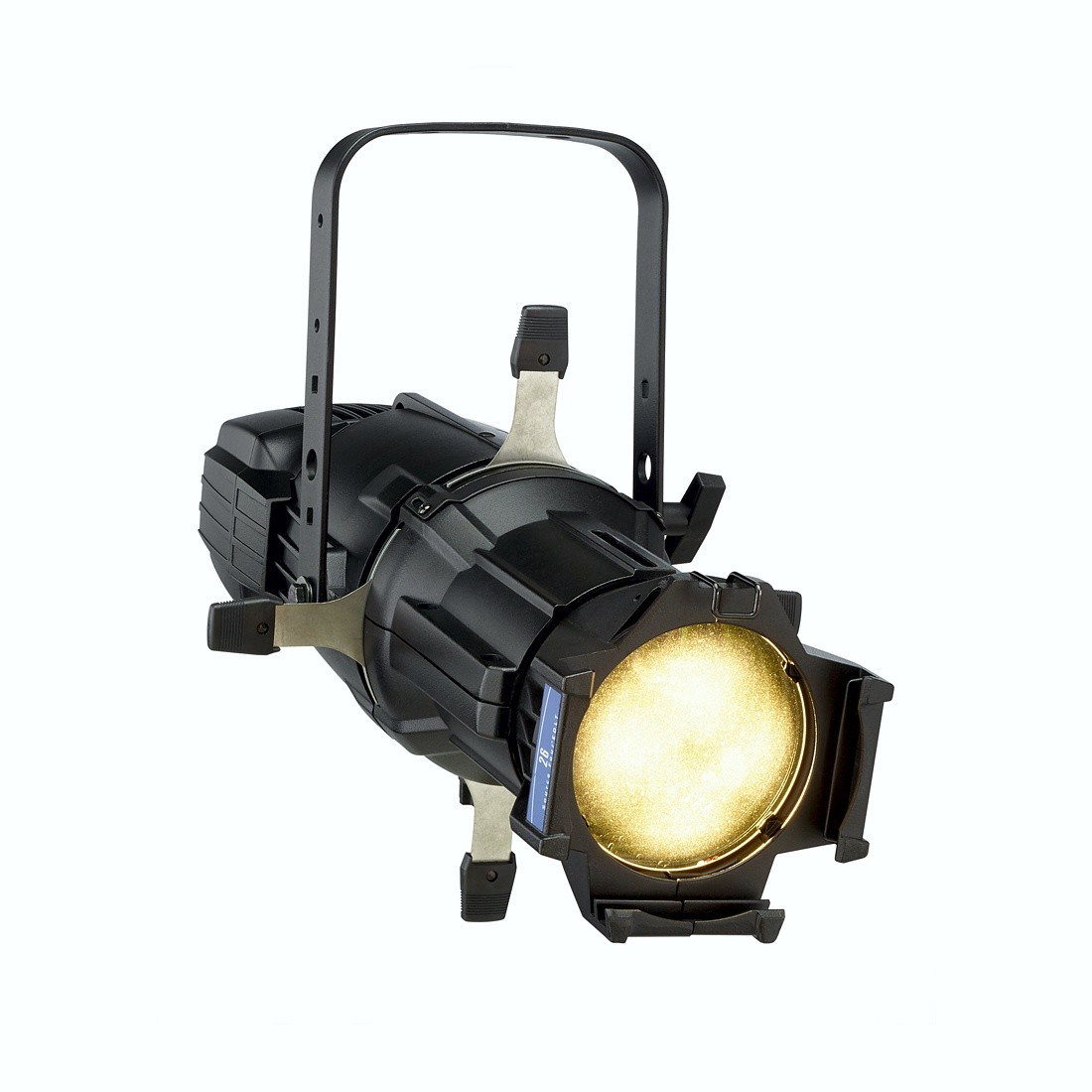

Source Four Body
The Source Four Black Ellipsoidal Spotlight combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. Source Four technology provides a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field.

Rated for 375, 575 or 750 watts, the Source Four is perfect for punching through saturated colors and providing the longest throws. The optional EDLT lens tubes for 26, 36 and 50° field angle models make the Source 4 even better for ultra-crisp, high-contrast gobo projections.

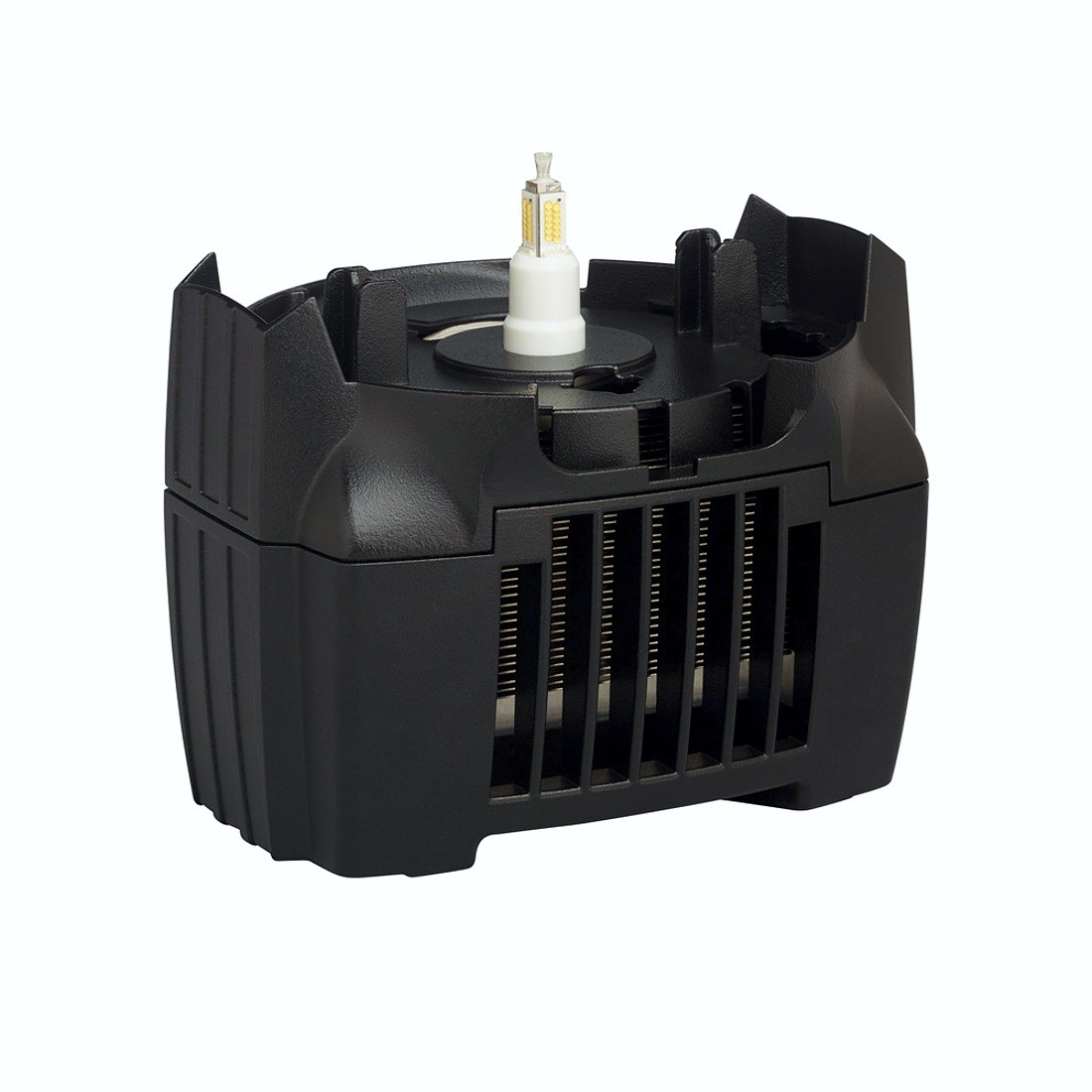

Source 4WRD LED Module:
The ETC Source 4WRD (Watt Reduction Device) LED is a replacement for a standard Source Four® burner assembly that will convert the HPL source to a whilte-light LED and provides a significant reduction in power consumption. The simple and quick upgrade is nondestructive and takes less than a minute. in most cases it can even be done without breaking the fixture's focus.

Source 4WRD LED is theatrically dimmable via DMX or line dimmable, with a traditional LED curve, to allow flexibility for your installation. And, because it is an LED source, your fixtures will run cool and efficiently without lamp replacements.

Features:
Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
HPL bulb and borosilicate reflector provide more lumens per watt: at 575 watts the Source Four literally outshines other brands' 1000W ellipsoidals. At 750 watts, no other ellipsoidal can compare to this fixture.
The steel yoke has 2 mounting position choices.
Fixture has 2 accessory slots, and a top-mounted gel frame retainer.
Tool-free lamp centering and peak/flat adjustment knobs are built in.
UL and cUL Listed.
Supports ETC Dimmer Doubling Technology

Specifications:
Rating - 375, 575, 750 Watts
Socket (Lampholder) - G9, Heat Sink bi-pin
Lens (Condenser) - High contrast aspheric Lens
Reflector (Mirror) - Faceted borosilicate aluminum, multi-layer dichroic coating
Mounting - M12 hole with C-clamp, safety cable optional
Yoke - Twin flat blade steel fork, 2 mounting positions
Cable - 3', fiberglass sheath
Focusing - Various tubes available, Stainless steel shutters
Weight - 16.3 lb (7.4 kg) with C-Clamp
Dimensions - 20.1 - 22.8 x 21.3 x 12.4" (52 - 58 x 54 x 31 cm) with C-Clamp

Source 4WRD Specifications:
Physical -
Rugged, die cast aluminum construction
Can be fitted to any Source Four fixture body (not for Source Four Par/nel, Fresnel, or jr.)
Seven segment display for simple DMX setup
Two button user interface
Easy mounting with single screw attachment
Replaces Source Four burner assembly
IP20 rating for indoor use only
UL and cUL Listed
UL1598C

Electrical -
114-125V, 60 Hz
155 Watt draw at full (182 Watt theoretical max draw)
30,000 hour L70 rating (ETC estimate)
DMX in and thru via RJ45 connector (DMX is not self-terminating)
AC and DMX dimmable
Two fixtures per circuit (D20 module) when using AC dimming
14 fixtures per non-dim circuit (R20 module) when using DMX dimming
Inrush: 30A (first half-cycle) at 120V
Typical Power Consumption at 120V:

Idle Power / Current -
DMX Mode: 1.2W/0.046A
AC Mode: 0W
Full Intensity Power / Current: 155.7W/1.35A

Optical -
Tool free field adjustment
LED lamp consisting of four CREE LED modules
LED lamp is fragile and should not be touched
3000K, 80CRI output
Uses the Source Four ellipsoidal's existing reflector and optical system

Thermal -
41° F to 104° F operating range (5° to 40° C)
Fixture must be above freezing temperatures for one hour before being energized
Quiet fan cooling
Fixture is designed for continuous operation up to 104° F (40° C) ambient temperature and requires free flow of air around fixture housing
