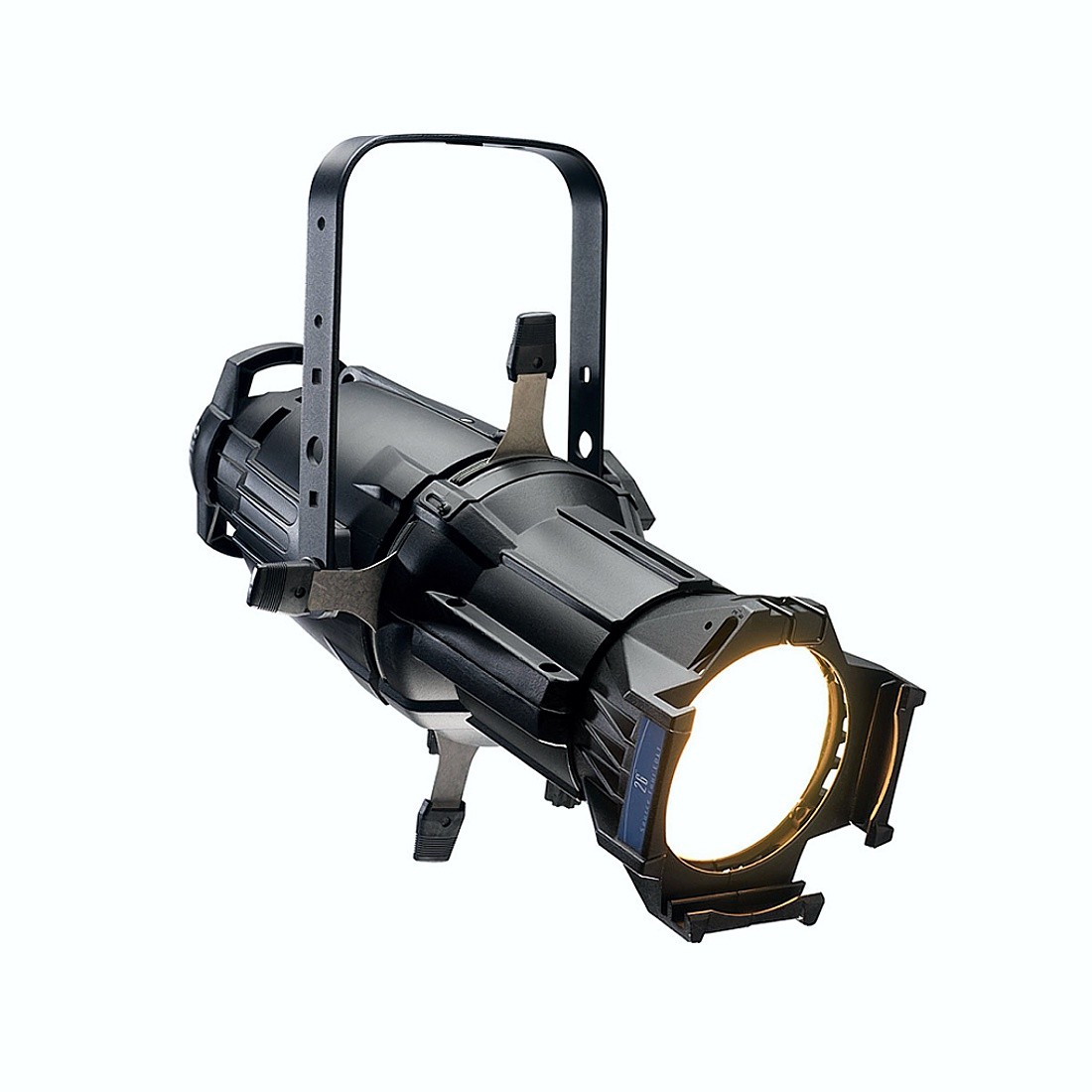

Ellipsoidal, ETC Source 4 Leko

The Source Four 750 Watt Black Ellipsoidal Spotlight combines the energy-saving power of the patented HPL lamp, with a dichroic reflector and optical-quality lenses. Source Four technology provides a clean white beam for unequaled imaging, crisp pattern projection, and a bright, even field.

Rated for 375, 575 or 750 watts, the Source Four is perfect for punching through saturated colors and providing the longest throws. The optional EDLT lens tubes for 26, 36 and 50° field angle models make the Source 4 even better for ultra-crisp, high-contrast gobo projections.

When fitted with a 750 watt HPL bulb, this fixture will provide a beam of 142 footcandles 14.2 ft (4.3 m) in diameter, from a distance of 45 ft (13.6 m). It will throw 15 footcandles 23.6 ft (7.1 m) in diameter, from a distance of 75 ft (22.7 m).

Features:
Thermally insulated rear handle, knobs and shutter handles, and heat-sink lamp socket make handling and aiming easier; gels, patterns and shutters last longer, and your performance space stays cooler.
Die-cast aluminum construction, 20 gauge stainless steel focusing shutters in a 25° rotating assembly will provide many years of dependable service.
HPL bulb and borosilicate reflector provide more lumens per watt: at 575 watts the Source Four literally outshines other brands' 1000W ellipsoidals. At 750 watts, no other ellipsoidal can compare to this fixture.
The steel yoke has 2 mounting position choices.
Fixture has 2 accessory slots, and a top-mounted gel frame retainer.
Tool-free lamp centering and peak/flat adjustment knobs are built in.
UL and cUL Listed.
Supports ETC Dimmer Doubling Technology

Specifications:
Rating - 375, 575, 750 Watts
Socket (Lampholder) - G9, Heat Sink bi-pin
Lens (Condenser) - High contrast aspheric Lens
Reflector (Mirror) - Faceted borosilicate aluminum, multi-layer dichroic coating
Mounting - M12 hole with C-clamp, safety cable optional
Yoke - Twin flat blade steel fork, 2 mounting positions
Cable - 3', fiberglass sheath
Focusing - Various tubes available, Stainless steel shutters
Weight - 16.3 lb (7.4 kg) with C-Clamp
Dimensions - 20.1 - 22.8 x 21.3 x 12.4" (52 - 58 x 54 x 31 cm) with C-Clamp
