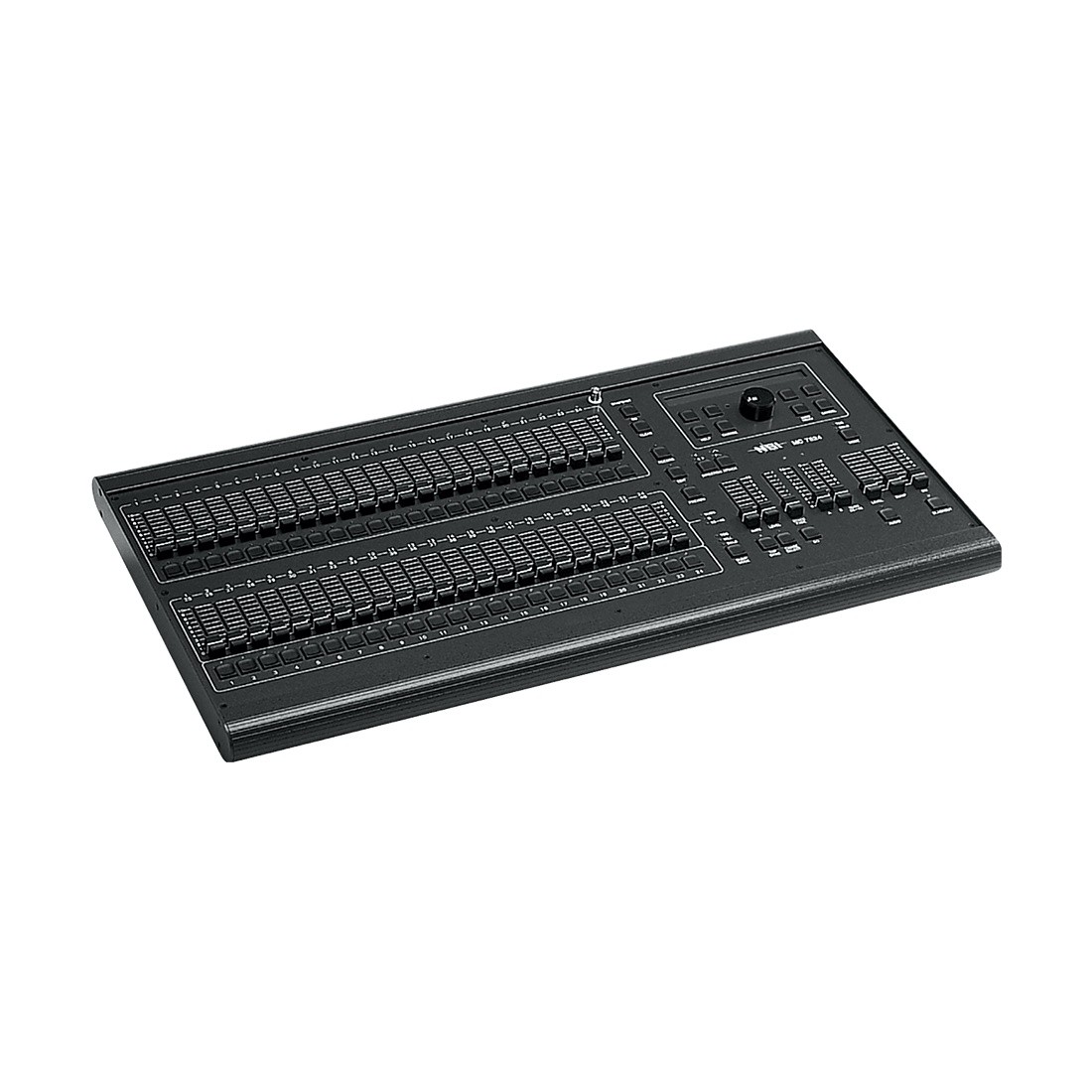

48 Channel DMX Controller, NSI MC 7524

The MC 7500 series of control consoles feature a combination of power, flexibility and ease of use. It is designed to meet the needs of the advanced lighting designer, with features including cue stacking, SMPTE via MIDI, level-sensitive chasing and up to 512 memory scene capability.

Suggested applications include concert halls, houses of worship, schools, clubs, and rental shops

Features:
24/48 individual control channels
384 programmable memory scenes
24 user programmable level sensitive chase effects
16 independent cue stacks allow combinations of memory scenes and chases to be arranged as steps in a playback sequence. Program precise fade times to each step or use the manual stack fader from step to step
Chase control functions include master level, rate, instant on/off or the fade rate between each chase step and the direction of the chase
Dual split dipless crossfaders proportionally vary the intensity of levels between scenes A and B
Individual channel bump buttons with master bump level slider
Channel and scene bump button modes include momentary, toggle on/off, kill mode (allows only one button to toggle at a time) and solo mode which overrides console output except for the bump buttons that are pressed
Soft patch up to 512 dimmers
Audio sync
MIDI show control and SMPTE time code via MIDI to activate scenes
On board help function
Fully protected non-volatile EEPROM memory (10 year retention)
Universal internal power supply
Preheat function can be set from 0-20% of output level providing faster lamp response and longer lamp life Console locks include Record and Set up, which prevent unauthorized or accidental changes to programming or configuration
Dimensional Data: Width: 29.00" [73.7 cm], Depth: 15.00" [38.1 cm], Height: 4.00" [10.2 cm]
Shipping Weight: 24.00 lbs [10.9 kg]
NSI 128 channel Micro-Plex out (3 pin XLR male and female)DMX512 digital control (female 5 pin XLR)
MIDI in/out/through (5 pin DIN)
Audio in (RCA type female)
Optional 37 pin 0-10 volt analog control port
Optional AMX192 out (4 pin XLR)
