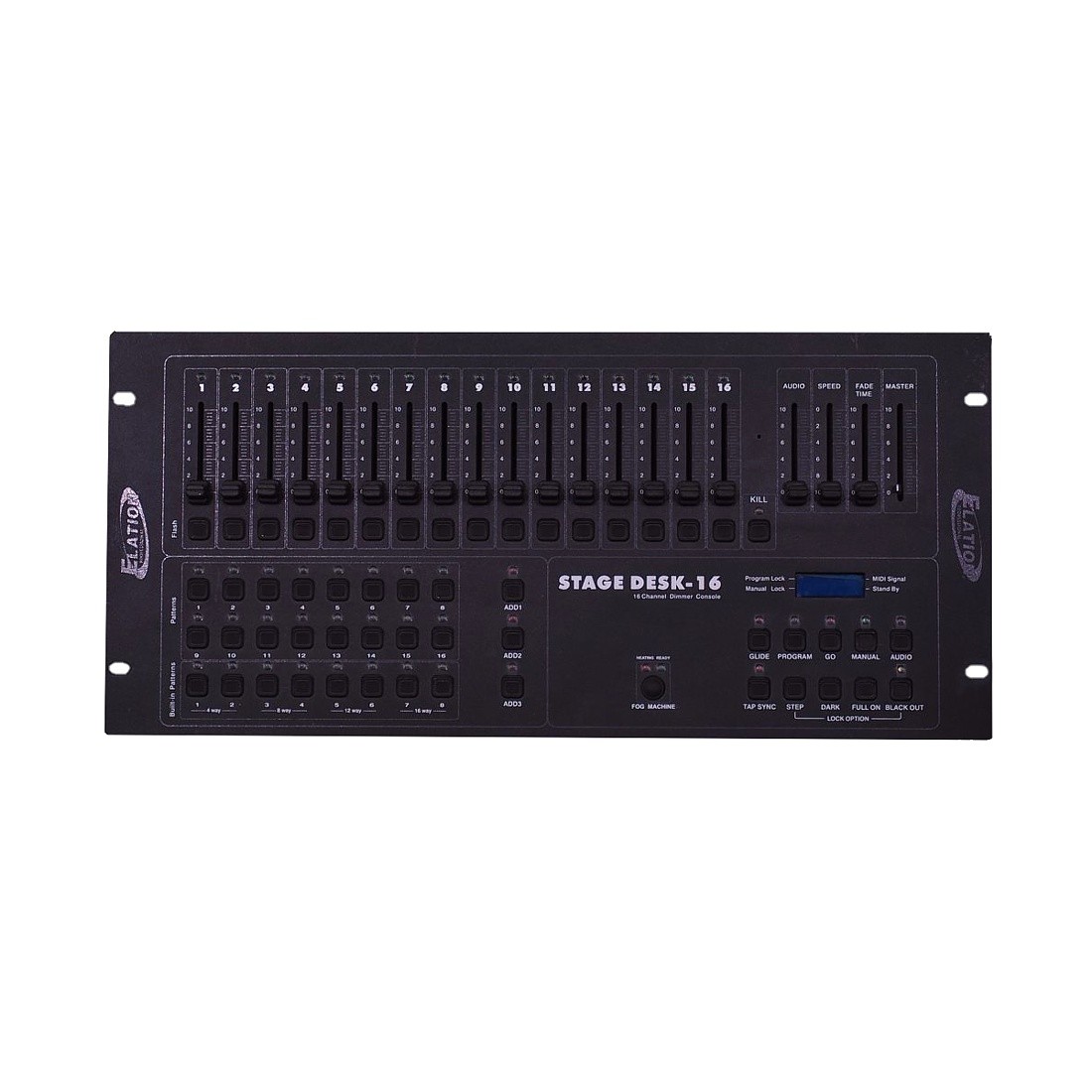

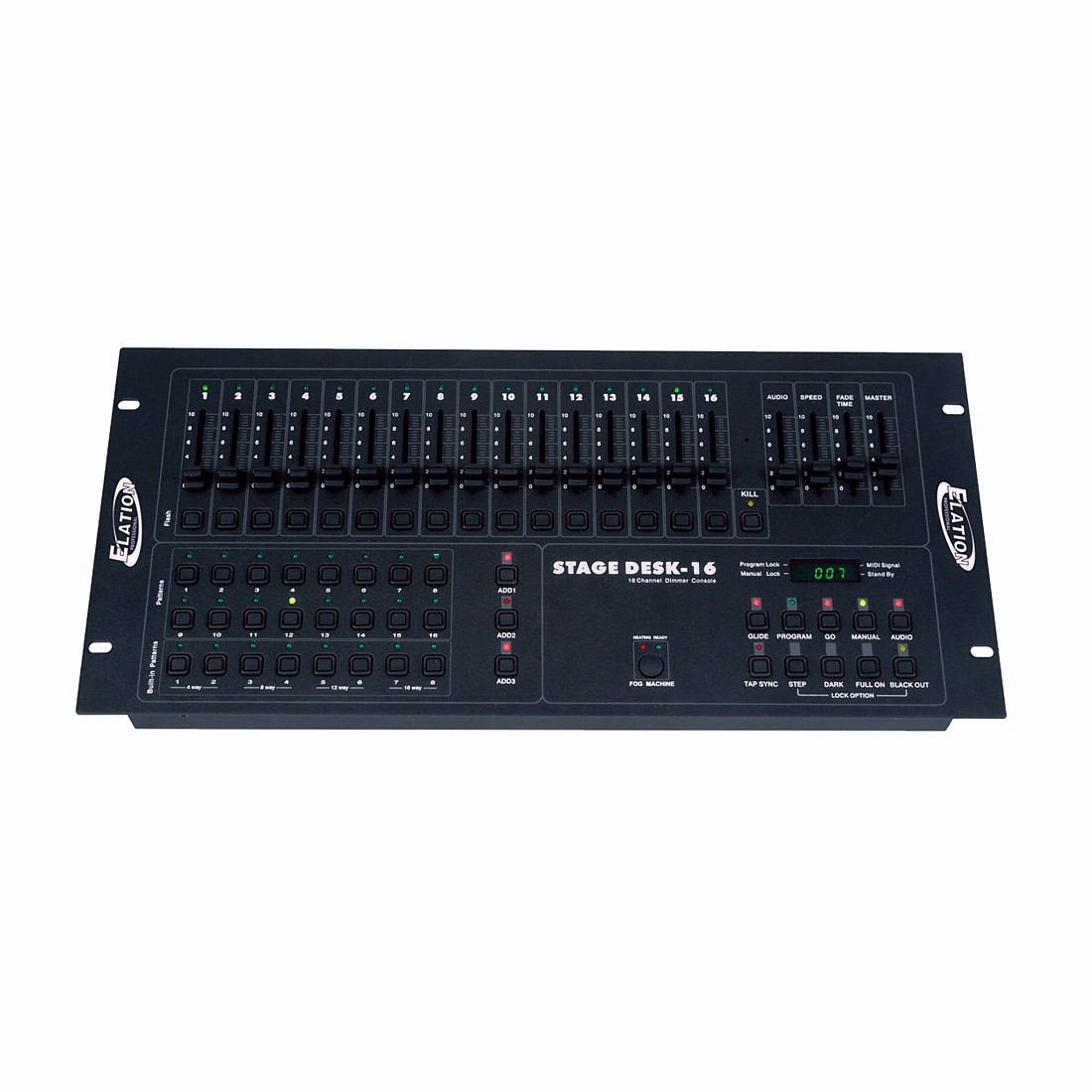

16 Channel DMX Controller, Elation Stage Desk

Easy DMX programmability with sixteen self programs, eight built-in programs, and MIDI in/out/thru. USITT DMX-512 protocol with 3-pin XLR. Audio, fade, and speed control; master fader control; digital LCD display screen; and Tap Synch button. Sixteen individual fader channels with sixteen flash buttons give you complete command of your light show. Sound activated via built-in mic or line in, and a whole lot more

Specifications:
Conventional dimming console
16 total DMX channels
8 built in Chases
16 programmable Chases- 100 steps each
16 individual channel faders
16 bump buttons
Glide & Go functions
Kill function
Tap Sync button for speed / fade override
Independent Speed & Fade control
Master fader- assigned to all 16 channels
Mix Chase function
Full-On button for 100% momentary output to all 24 channels
Bright LCD display
Audio input and built in microphone for music sync functions
Audio level fader
Fog Machine input and trigger button- compatible with MB-1000, Stallion, Vapor-Flow, Fog-Storm 1200 & 1700
One 3 Pin DMX XLR output
Polarity switch (2-, 3+, / 2+, 3-)
Midi In, Out & Thru connectors
Foot control input
Power: 120V. / 12V DC, 500mA. (Included) *Also available in 220V
Dimensions (LxWxH): 8" x 19” x 3”
Weight: 9 lbs
