Gobo Rotator, Apollo RotoQ

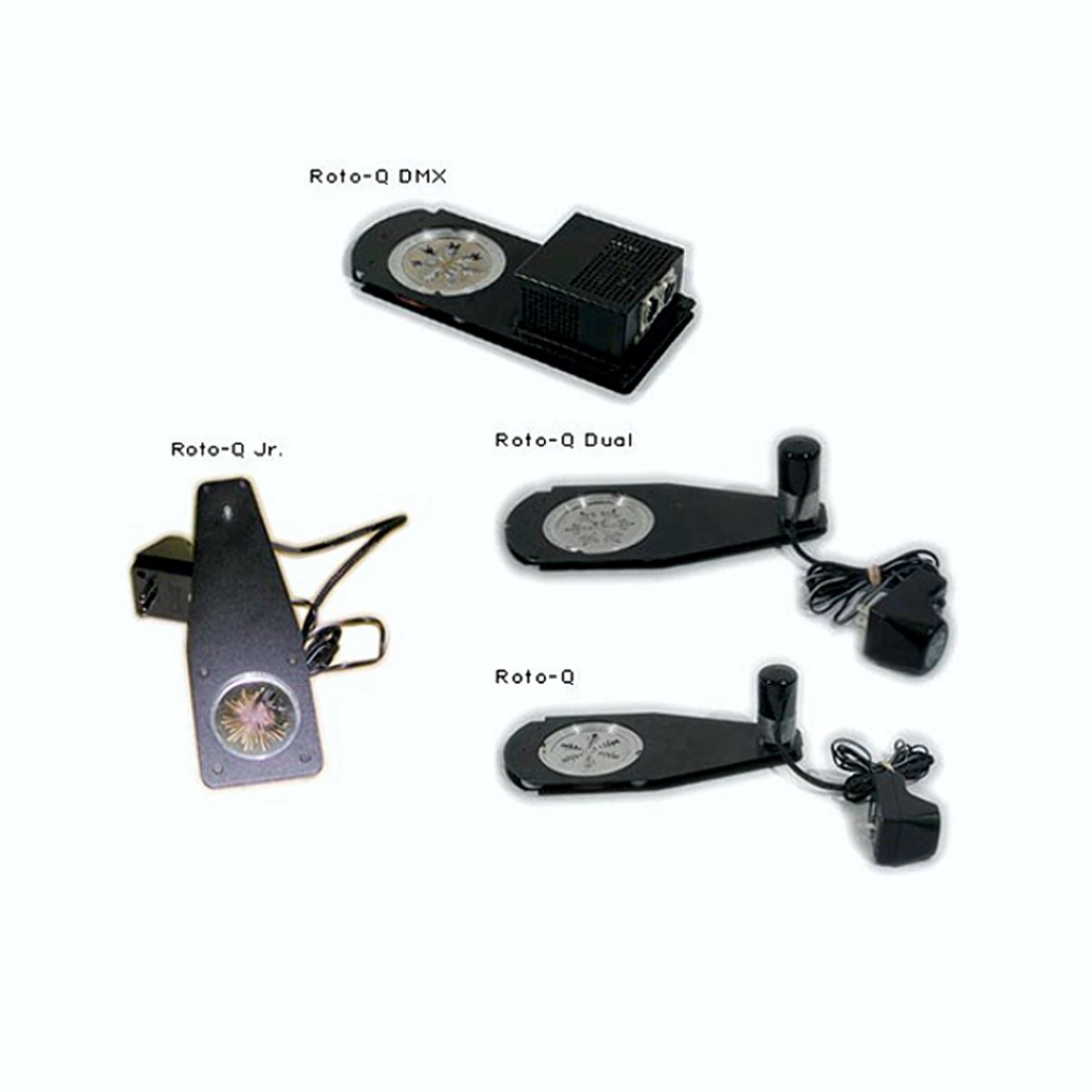

Roto-Q’s are gobo rotators designed to accept metal or glass gobos. They allow the users to create fantastic kinetic effects. The Roto-Q Single holds one gobo, while the Dual Spin and DMX accept two gobos in any combination of metal and glass.

The Roto-Q Single and Roto-Q Dual Spin units are powered by a 24V DC adapter supplied with the unit. It can be plugged into any 120 volt power source.

Rotational speeds for the individual settings are: 1.5V – 0.6 rpm 3.0V – 1.3 rpm 4.5V – 2 rpm 6.0V– 3 rpm 9.0V – 4 rpm 12.0V – 5 rpm.

Specifications:
Fixtures - Roto-Q units are designed and tested for use in ETC Source Four, Altman Shakespeare, and Strand SL fixtures.
Dimensions - 11.25” [28.57cm] h; 4.75” [12.06cm] w; 2.75” [6.98cm] d
Gobo Sizes - “B”; max size up to 3.55” [90.2mm] metal, 3.1” [78.74mm] glass min size; 3.1”
Power Requirements - 120 volt 60hz
Power Consumption - 0.5 amp @24vdc
Power Cord - 7 feet long [2.13m]
Weight -  2.2 lb [1 kg]
Approvals - Complies with EU directives: EMC 89/336/EEC Class A. Radiated Emissions: Complies with FCC part 15, sub part B, Class A for unintentional radiators.
